m24

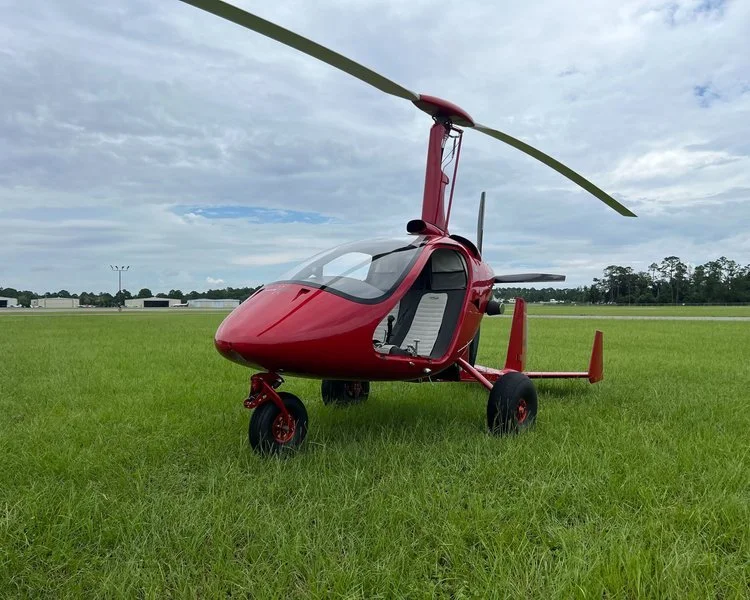

Orion
The Specs
performance
Max Speed: 115 mph
Cruise: 95 mph
Rate of Climb: 1500 ft/min
Service Ceiling: 12,000 ft
Takeoff Roll: 300 ft
Landing Roll: 0–50 ft
Max Crosswind: 25 knots
Fuel Burn: 4.5–6.5 gph
Endurance: 3–4.5 hours
Range: 325 miles
Fuel Capacity: 21 gallons
specifications
Rotor Diameter: 28 ft
Height: 9 ft 1 in
Length: 14 ft 6 in
Width: 5 ft 10 in
Engine: Rotax 915iS / 916iS
Empty Weight: 665 lbs
Gross Weight: 1320 lbs
Baggage: 40 lbs
Fuselage: Carbon Fiber
Frame: 4130 Steel
Rotor: Composite
Propeller: DUC 4 Blade
Controls: Full Dual
Wheels: Beringer
Build and price
Use our interactive tool to design the perfect Rebel Red’s M24 Orion Gyroplane.
Select your model, customize features, and explore upgrade options to see real-time pricing. It’s the easiest way to plan your dream aircraft and understand the possibilities before you take flight.
