xtreme
gyros

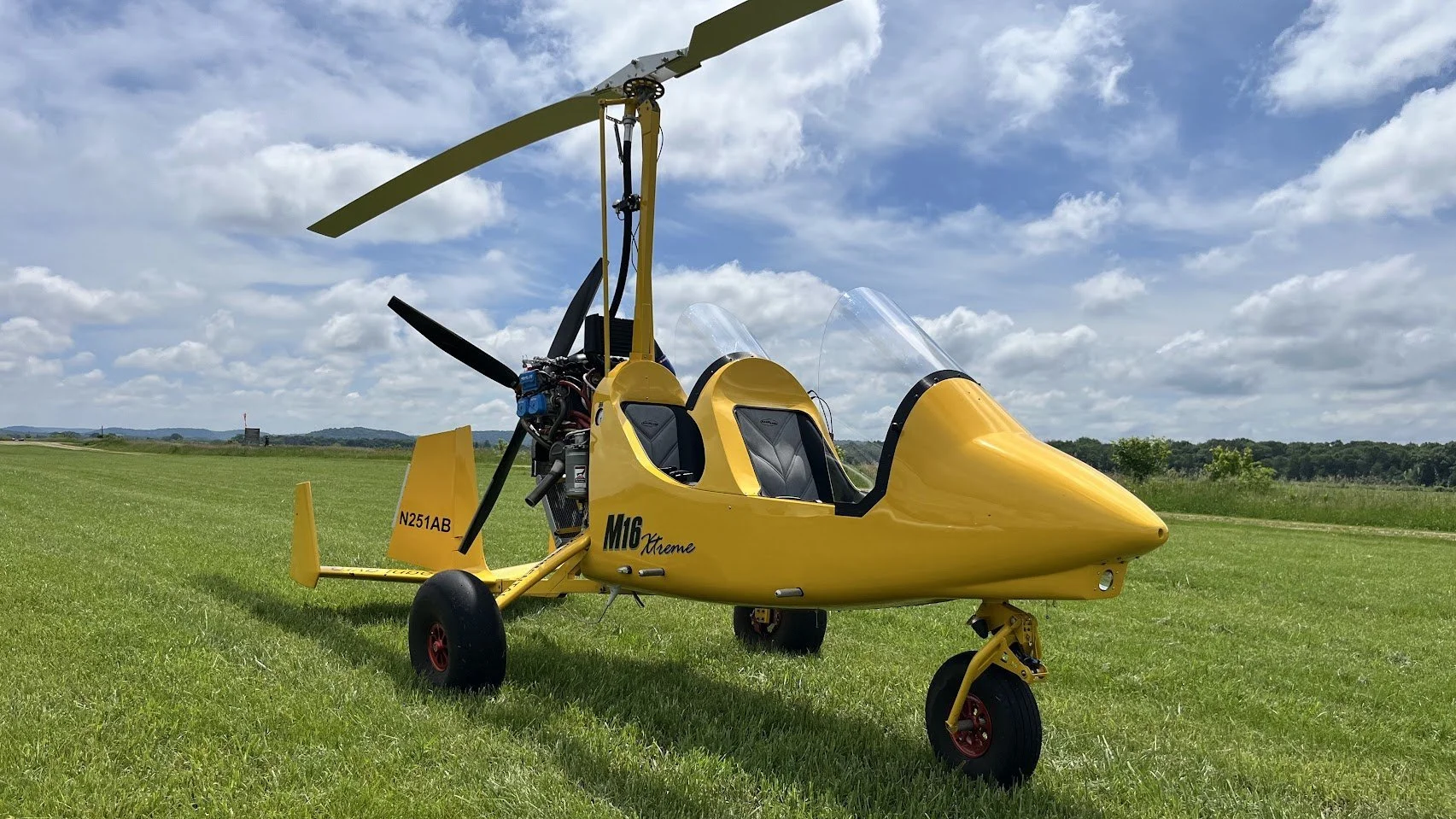

m16 xtreme
Open air adventure with extremely short takeoff and landing rolls. 360 degree visibility with dual controls for two pilots to enjoy the experience.
sPECIFICATIONS
Configuration: Tandem
Doors: What doors?
Rotor Diameter: 28 ft
Height: 9 ft 3 in
Length: 15 ft 6 in
Width: 5 ft 10 in
Engine: Rotax 915iS
Empty Weight: 685 lbs
Gross Weight: 1320 lbs
Fuel Capacity: 19 gallons
Baggage: 40 lbs
Fuselage: Carbon Fiber
Frame: 4130 Chromoly Steel
Rotor: High Inertia Composite
Propeller: DUC Flash 2 4 Blade
Controls: Dual
Wheels: Beringer
Nose Gear: Fox Shocks Articulated
Main Tires: Aero Classic Tundra 850
PERFORMANCE
Max Speed: 115 mph
Cruise: 95 mph
Rate of Climb: 1500 ft/min
Takeoff Roll: 100 - 225 ft
Landing Roll: 0 - 50 ft
Max Crosswind: 25 knots
Fuel Burn: 4.0 - 6.5 gph
Range: 325 miles
m22 xtreme
The open air feel of the M16 but without rear controls to get in the way of your passenger; add baggage space and you have the perfect traveling gyroplane.
SPECIFICATIONS
Configuration: Tandem
Doors: Overkill…
Rotor Diameter: 28 ft
Height: 9 ft 3 in
Length: 15 ft 6 in
Width: 5 ft 10 in
Engine: Rotax 915iS
Empty Weight: 685 lbs
Gross Weight: 1320 lbs
Fuel Capacity: 19 gallons
Baggage: 40 lbs
Fuselage: Carbon Fiber
Frame: 4130 Chromoly Steel
Rotor: High Inertia Composite
Propeller: DUC Flash 2 4 Blade
Controls: Front Only
Wheels: Beringer
Nose Gear: Fox Shocks Articulated
Main Tires: Aero Classic Tundra 850
PERFORMANCE
Max Speed: 115 mph
Cruise: 95 mph
Rate of Climb: 1500 ft/min
Takeoff Roll: 100 - 225 ft
Landing Roll: 0 - 50 ft
Max Crosswind: 25 knots
Fuel Burn: 4.0 - 6.5 gph
Range: 325 miles

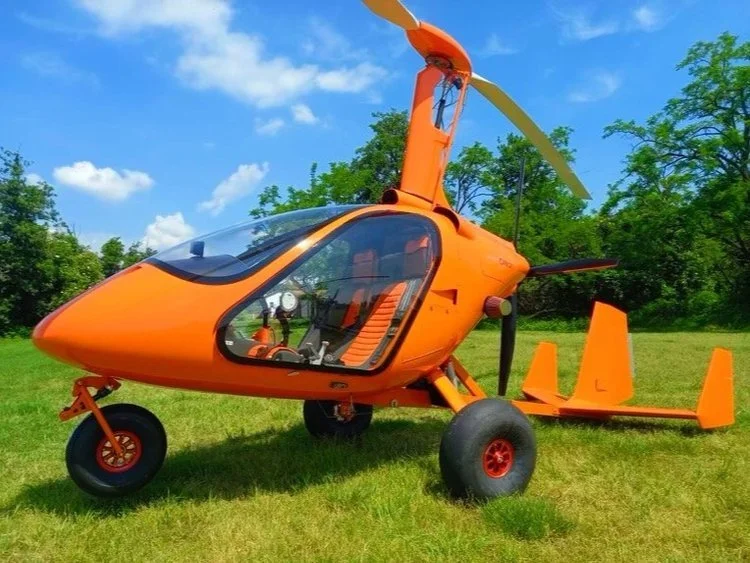

m24 xtreme
Side by side excitement ready for summer or winter. Incredible visibility, rugged capabilities, modern innovative design.
sPECIFICATIONS
Configuration: Side by Side
Doors: Removable
Rotor Diameter: 28 ft
Height: 9 ft 3 in
Length: 14 ft 6 in
Width: 5 ft 10 in
Engine: Rotax 915iS or 916iS
Empty Weight: 695 lbs
Gross Weight: 1320 lbs
Fuel Capacity: 21 gallons
Baggage: 60 lbs
Fuselage: Carbon Fiber
Frame: 4130 Chromoly Steel
Rotor: High Inertia Composite
Propeller: DUC Flash 2 4 Blade
Controls: Dual
Wheels: Beringer
Nose Gear: Fox Shocks Articulated
Main Tires: Aero Classic Tundra 850
PERFORMANCE
Max Speed: 120 mph
Cruise: 95 mph
Rate of Climb: 1500 ft/min
Takeoff Roll: 200 - 300 ft
Landing Roll: 0 - 50 ft
Max Crosswind: 25 knots
Fuel Burn: 4.5 - 7.0 gph
Range: 325 miles
